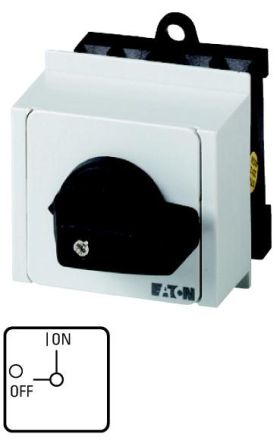

Eaton T0-2-15679/IVS on-off switch, 036506

In stock

SKU: 226130

Price on request

€30.10

€0

Overview

ON-OFF switch, product range: ON-OFF switch, type code: T0, with black toggle and front plate, 3-pole, protection class: front IP30, design: distribution board installation, switching angle: 90 °, switching behavior: latching, front plate: 0-1, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated continuous current: Iu = 20 A, 2 unit(s), standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, load-break switch according to IEC/EN 60947-3

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	5.5 kW
Number of auxiliary contacts as normally open:	1
Rated continuous current Iu:	20 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP30
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	6 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	no
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	0.32 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	5.5 kW
Switching capacity at 400 V:	5.5 kW
Rated continuous current at AC-21, 400 V:	20 A
Number of Switch:	1
Protection class (NEMA):	other
