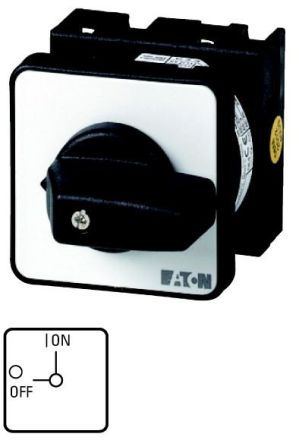

Eaton T3-3-15680/EZ on-off switch, 095058

In stock
SKU: 227313
€70.60
Into a basketIn the basketGo

Overview

ON-OFF switch, 3-pole + N + 1 NO + 1 NC, 32 A, 90 °, central installation

Eaton Type: T3-3-15680/EZ
Eaton Article No.: 095058

PropertyValue
Number of poles:4
Operating power:15 kW
Number of auxiliary contacts as normally closed:1
Number of auxiliary contacts as normally open:1
Rated continuous current Iu:32 A
Max. Rated operating voltage Ue at AC:690 V
Version as EMERGENCY STOP device:no
Protection class (IP), front:IP65
Connection type main circuit:screw connection
Device design:Built-in device, fixed installation technology
Design of the actuating element:short rotary handle
Suitable for floor mounting:no
Conditional rated short-circuit current Iq:1 kA
Motor drive integrated:no
Suitable for front mounting 4-hole:no
Version as maintenance/repair switch:no
Voltage release optional:no
Suitable for front mounting central:yes
Suitable for intermediate installation:no
Suitable for distribution board installation:no
Version as main switch:no
Version as safety switch:no
Motor drive optional:no
Lockable:no
Version as Reversing switch:no
Rated short-time withstand current Icw:0.65 kA
Color of the actuating element:black
Rated operating voltage:690 V
Rated operating power at AC-3, 400 V:11 kW
Switching capacity at 400 V:15 kW
Rated continuous current at AC-21, 400 V:32 A
Number of switches:1
Protection class (NEMA):12

Characteristics

HABT3-3-15680/EZ
ManufacturerEaton
HAN095058
GTIN4015080950585
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open1
Number of auxiliary contacts as normally closed1
Number of switches1
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchNo
Version as reversing switchNo
Design of the actuating elementShort twist grip
Conditional rated short-circuit current Iq1kA
Rated operational power at AC-3, 400 V11kW
Rated operating voltage690V
Rated continuous current Iu32 A
Rated continuous current at AC-21, 400 V32 A
Rated short-time withstand current Icw0.65kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralYes
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles4
Switching capacity at 400 V15kW
Protection class (IP), frontIP65
Protection class (NEMA)12
Voltage release optionalNo
LockableNo
