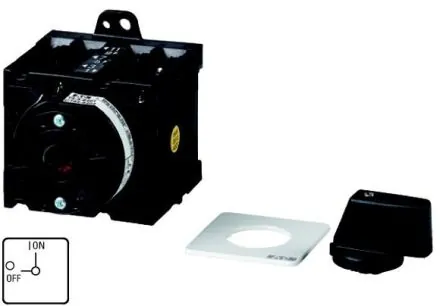

ON-OFF switch, Product range: ON-OFF switch, Type reference: T3, 6-pole, Design: Intermediate installation, Basic switch, Switching angle: 90 °, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated continuous current: Iu = 32 A, 4 unit(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3
| Property | Value |
| Number of poles: | 6 |
| Rated operating power at AC-23, 400 V: | 15 kW |
| Number of auxiliary contacts as normally closed: | 1 |
| Number of auxiliary contacts as normally open: | 1 |
| Rated continuous current Iu: | 32 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP00 |
| Connection type main circuit: | screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | short rotary handle |
| Suitable for floor mounting: | yes |
| Conditional rated short-circuit current Iq: | 1 kA |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | yes |
| Suitable for distribution board installation: | no |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 0.65 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 11 kW |
| Switching capacity at 400 V: | 15 kW |
| Rated continuous current at AC-21, 400 V: | 32 A |
| Number of Switch: | 1 |
| Protection class (NEMA): | other |
