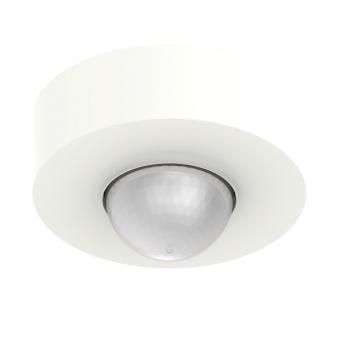

MERTEN MEG5640-3119 ARGUS360 polar white IP54 motion detector

MERTEN MEG5640-3119 ARGUS360 polar white IP54 motion detector

In stock

SKU: 512209

Price on request

€132.08

€0

Overview

ARGUS 360. Motion detector for ceiling mounting outdoors. 360 degree area monitoring with a diameter of 20 m (installation height 2.5 m). Controls for setting the brightness threshold and time. LED function display. Mains voltage AC 230 V +/-10%, 50/60 Hz. Incandescent lamps max. 3000 W. Capacitive load max. 176 uF. Detection angle 360 degrees. Range max. 20 m +/-10% at a mounting height of 2.5 m. Number of levels 11. Number of zones 1416. Light sensor 2-100 lux and teach mode. Time 5s to 15 min. and pulse mode approx. 2 s. Neutral conductor required. EC directives Low Voltage Directive 73//23/EEC and EMC Directive 89/336/EEC. Protection class IP 54. Dimensions 121x65 mm (diameter x height). Scope of delivery with screws and dowels. Color polar white.

Property	Value
Depth:	65.0 mm
Width:	121.0 mm
Height:	121.0 mm
Design:	Motion detector
Color:	white
Rated voltage:	230.0 V
RAL number (similar):	9003.0
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	2.0 to 1000.0 lx
Protection class (IP):	IP54
Max. switching capacity:	2000.0 W
Type of voltage:	AC
Max. Range to one side:	20.0 m
Scan angle:	360.0 °
Suitable for wall mounting:	no
Min. duty cycle:	5.0 s
Max. Duty cycle:	15.0 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20.0 to 50.0 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. presence range:	1973.0 m²
Max. frontal range:	20.0 m
Max. Inrush current:	10.0 A
Sensor type:	passive infrared/ultrasonic (dual)
Optimal mounting height:	2.8 m
Surface finish:	glossy
Surface:	untreated
Material quality:	Thermoplastic
Detection field diameter on floor:	40.0 m
Number of switching zones:	1416.0
Switch-off delay:	0.0 s
Switch-on delay:	0.0 s
Horizontal detection angle:	0.0 to 360.0 °
Frequency:	50.0 to 60.0 Hz
Sensor swivel range, vertical:	0.0 °
Sensor swivel range, horizontal:	0.0 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Diameter:	121.0 mm
Installation width:	0.0 mm
Installation depth:	0.0 mm
Installation length:	0.0 mm
Installation diameter:	0.0 mm
Min. depth of the device box:	0.0 mm

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Number of switching zones1416.0

Response brightness2.0 to 1000.0 lx

Forced shutdownNo

Max. inrush current10.0 A

Scanning angle360.0 °

Forced switching onNo

Max. presence range1973.0 m²

HABARGUS360 polar white IP54

Manufacturer

HANMEG5640-3119

GTIN4042811221546

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

Version

Surface finishGlittering

Width121.0 mm

Diameter121.0 mm

Installation width0.0 mm

Installation diameter0.0 mm

Installation length0.0 mm

Installation depth0.0 mm

Detection field diameter on floor40.0m

Detection angle horizontal0.0 to 360.0 °

Color

Remote controllableNo

Frequency50.0 to 60.0 Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height121.0 mm

Constant light controlNo

Max. duty cycle15.0 min

Max. range frontal20.0m

Max. range to one side20.0m

Max. switching capacity2000.0W

Min. duty cycle5.0s

Min. depth of the device box0.0 mm

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputYes

Nominal voltage230.0V

SurfaceUntreated

Optimal mounting height2.8m

RAL number (similar)9003.0

IP protection)IP54

Sensor typePassive infrared/ultrasound (dual)

Voltage typeAC

Teach function for response brightnessYes

Temperature-20.0 to 50.0 °C

Depth65.0 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
