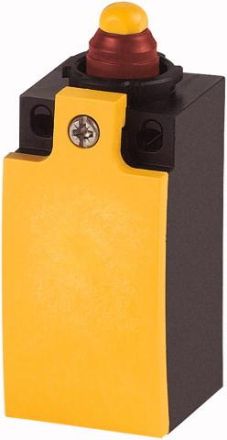

Position switch, basic function: position switch, safety position switch, type code: LS (M) -., product range: round plunger, protection class: IP65, features: basic device, expandable, ambient temperature: -40 - +70 °C, contact configuration Ö = normally closed: 2 Ö, note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, positive opening (ZW): yes, color of housing cover: yellow, housing: plastic, connection type: cage clamp, Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden., accessories for the cage clamp connection from Wago: insertion bridge, gray, Wago order no. 264-402, standards and regulations: IEC/EN 60947
| Property | Value |
| Number of contacts as normally closed: | 2 |
| Length of sensor: | 33.5 mm |
| Width of sensor: | 31 mm |
| Height of sensor: | 61 mm |
| Switching function: | Slow action contact |
| Protection class (IP): | IP65 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | yes |
| With status display: | no |
| Design of the interface: | without |
| Design of the actuating element: | domed plunger |
| Design of the electrical connection: | cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -40 to 70 °C |
| Number of safety-related auxiliary contacts: | 2 |
| Positive opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.3 A |
| Rated operating current Ie at DC-13, 125 V: | 0.8 A |
| Rated operating current Ie at DC-13, 24 V: | 3 A |
| Rated operating current Ie at AC-15, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 125 V: | 6 A |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Alignment of the actuating element: | Roller plunger straight |
| Switching function latching: | no |
| Protection class (NEMA): | other |
