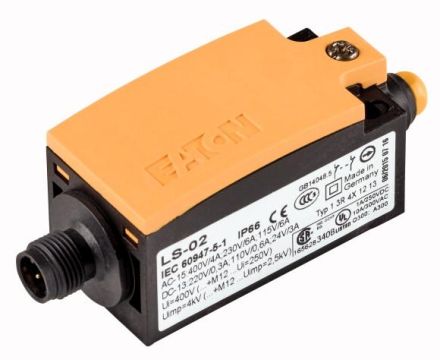

Eaton LS-02-M12A position switch, 2NC, round plunger, M12A, 178128

Eaton LS-02-M12A position switch, 2NC, round plunger, M12A, 178128

In stock

SKU: 220374

Price on request

€37.15

€0

Overview

Position switch, basic function: position switch, safety position switch, type code: LS (M) -., product range: domed plunger, protection class: IP66, scope of delivery: with integrated M12 connector, equipment: basic device, expandable, ambient temperature: -25 - +70 °C, contact configuration Ö = normally closed: 2 Ö, note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, positive opening (ZW): yes, color of housing cover: yellow, housing: plastic, connection type: cage clamp, Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden., accessories for the cage clamp connection from Wago: insertion bridge, gray, Wago order no. 264-402, standards and regulations: IEC/EN 60947

Property	Value
Number of contacts as normally closed:	2
Length of sensor:	33.5 mm
Width of sensor:	31 mm
Height of sensor:	86 mm
Switching function:	Slow action contact
Protection class (IP):	IP66
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	yes
With status display:	no
Design of the interface:	without
Design of the actuating element:	domed plunger
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25 to 70 °C
Number of safety-related auxiliary contacts:	2
Positive opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.3 A
Rated operating current Ie at DC-13, 125 V:	0.6 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	6 A
Rated operating current Ie at AC-15, 125 V:	6 A
Rated operating current Ie at AC-15, 230 V:	6 A
Alignment of the actuating element:	roller plunger straight
Switching function latching:	no
Protection class (NEMA):	other
