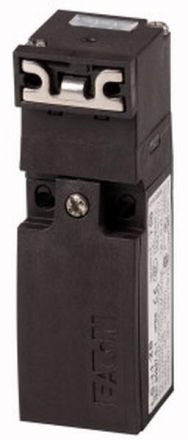

Eaton LS-11-SW-ZB safety position switch, black cover, 119722

Eaton LS-11-SW-ZB safety position switch, black cover, 119722

In stock

SKU: 220435

Price on request

€66.56

€0

Overview

Safety position switch, basic function: position switch, safety position switch, type reference: LS (4) .ZB, product range: safety position switch, protection class: IP66, description: when the actuating element is plugged in, the normally open contact is open and the normally closed contact is closed., standards and regulations: IEC/EN 60947

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of the sensor:	33.35 mm
Width of the sensor:	30 mm
Height of the sensor:	96 mm
Switching function:	Slow-action switching element
Protection class (IP):	IP66
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	yes
With status display:	no
Design of the interface:	without
Design of the actuating element:	domed plunger
Design of the electrical connection:	Cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25 to 70 °C
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.3 A
Rated operating current Ie at DC-13, 125 V:	0.8 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	10 A
Rated operating current Ie at AC-15, 125 V:	6 A
Rated operating current Ie at AC-15, 230 V:	6 A
Alignment of the actuating element:	other
Switching function latching:	no
Protection class (NEMA):	other
