Rated operating current Ie at DC-13, 230 V0.3 A
Rated operating current Ie at DC-13, 125 V0.8 A
Rated operating current Ie at AC-15, 24 V6 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V6 A

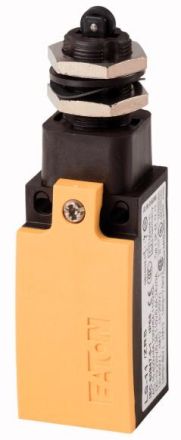

HABLS-11/ZRS
HAN115413
GTIN4015081151554
Number of contacts as normally open1
Number of contacts as opener1
Number of safety-related auxiliary contacts1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementRoller tappet
Design of the electrical connectionCable entry (metric)
Alignment of the actuatorRoller tappet straight
Rated operating current Ie at AC-15, 230 V6A
Rated operating current Ie at DC-13, 24 V3 A
Housing coatingOther
Width of the sensor31 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Height of the sensor61 mm
Length of the sensor33.5 mm
With status displayNo
Switching functionSlow-action switching element
Switching function latchingNo
IP protection)IP66/IP67
Protection class (NEMA)Other
Ambient temperature during operation-25 to 70 °C
Housing materialPlastic
Forced openingYes
