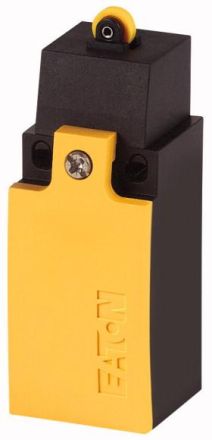

Position switch, basic function: drive heads, type code: LS (M) -., product range: roller lever, protection class: IP66, IP67
| Property | Value |
| Number of contacts as normally closed: | 1 |
| Number of contacts as normally open: | 1 |
| Length of sensor: | 33.5 mm |
| Width of sensor: | 31 mm |
| Height of sensor: | 61 mm |
| Switching function: | Slow action contact |
| Protection class (IP): | IP66/IP67 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | yes |
| With status display: | no |
| Design of the interface: | without |
| Design of the actuating element: | roller plunger |
| Design of the electrical connection: | Cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25 to 70 °C |
| Number of the safety-related auxiliary contacts: | 1 |
| Forced opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.3 A |
| Rated operating current Ie at DC-13, 125 V: | 0.8 A |
| Rated operating current Ie at DC-13, 24 V: | 3 A |
| Rated operating current Ie at AC-15, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 125 V: | 6 A |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Alignment of the actuating element: | Roller plunger straight |
| Switching function latching: | no |
| Protection class (NEMA): | other |
