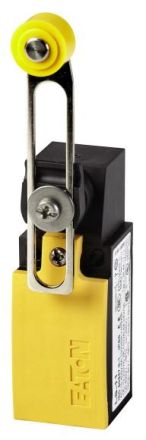

Position switch, basic function: position switch, safety position switch, type code: LS (M) -., product range: adjustable roller lever, protection class: IP66, IP67, features: complete device, ambient temperature: -25 - +70 °C, snap-action switching element: yes, contact configuration S = normally open: 1 S, contact configuration Ö = normally closed: 1 Ö, note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, positive opening (ZW): yes, color of housing cover: yellow, housing: plastic, connection type: cage clamp, Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden., accessories for the cage clamp connection from Wago: insertion bridge, gray, Wago order no. 264-402, standards and regulations: IEC/EN 60947
| Property | Value |
| Number of contacts as normally closed: | 1 |
| Number of contacts as normally open: | 1 |
| Length of sensor: | 33.5 mm |
| Width of sensor: | 31 mm |
| Height of sensor: | 61 mm |
| Switching function: | Snap-action switching element |
| Protection class (IP): | IP66/IP67 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | yes |
| With status display: | no |
| Interface design: | without |
| Actuator design: | Adjustable swivel lever |
| Electrical connection design: | Cable entry (metric) |
| Interface design for safety-related communication: | without |
| Ambient temperature during operation: | -25 to 70 °C |
| Number of safety-related auxiliary contacts: | 1 |
| Positive opening: | yes |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.3 A |
| Rated operating current Ie at DC-13, 125 V: | 0.8 A |
| Rated operating current Ie at DC-13, 24 V: | 3 A |
| Rated operating current Ie at AC-15, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 125 V: | 6 A |
| Rated operating current Ie at AC-15, 230 V: | 6 A |
| Alignment of the actuating element: | roller plunger transverse |
| Switching function latching: | no |
| Protection class (NEMA): | other |
