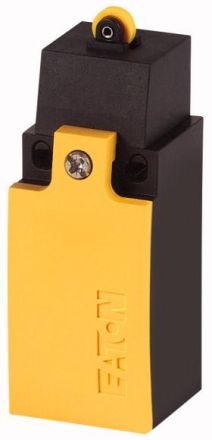

Eaton LS-S11/P position switch, 1NO+1NC, roller plunger, 106788

Eaton LS-S11/P position switch, 1NO+1NC, roller plunger, 106788

In stock

SKU: 220541

Price on request

€33.40

€0

Overview

Position switch, basic function: position switch, safety position switch, type code: LS (M) -., product range: roller plunger, protection class: IP66, IP67, features: complete device, ambient temperature: -25 - +70 C, design: EN 50047 form C, contact configuration S = normally open: 1 S, contact configuration Oe = normally closed: 1 Oe, note: = safety function, by positive opening in accordance with IEC/EN 60947-5-1, positive opening (ZW): yes, color of housing cover: yellow, housing: plastic, connection type: screw terminal, standards and regulations: IEC/EN 60947

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of sensor:	33.5 mm
Width of sensor:	31 mm
Height of sensor:	61 mm
Switching function:	Slow action contact
Protection class (IP):	IP66/IP67
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	yes
With status display:	no
Interface design:	without
Actuator design:	Swivel lever
Electrical connection design:	Cable entry (metric)
Interface design for safety-related communication:	without
Ambient temperature during operation:	-25 to 70 °C
Number of the safety-related auxiliary contacts:	1
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.3 A
Rated operating current Ie at DC-13, 125 V:	0.8 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	6 A
Rated operating current Ie at AC-15, 125 V:	6 A
Rated operating current Ie at AC-15, 230 V:	6 A
Alignment of the actuating element:	Roller plunger straight
Switching function latching:	no
Protection class (NEMA):	other
