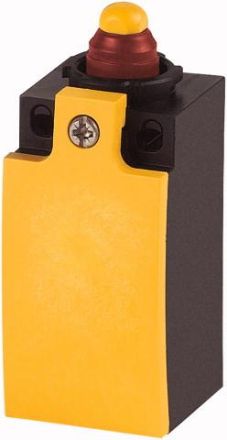

Eaton LS-S20A-CC position switch, 2NO, round plunger, cold climate -40°C, 176894

Eaton LS-S20A-CC position switch, 2NO, round plunger, cold climate -40°C, 176894

In stock

SKU: 220584

Price on request

€31.26

€0

Overview

Position switch, basic function: position switch, type code: LS (M) -., product range: round plunger, protection class: IP65, features: basic device, expandable, ambient temperature: -40 - +70 °C, contact configuration S = normally open: 2 S, colour of housing cover: yellow, housing: plastic, connection type: screw terminal, standards and regulations: IEC/EN 60947

Property	Value
Number of contacts as normally open:	2
Length of sensor:	33.5 mm
Width of sensor:	31 mm
Height of sensor:	61 mm
Switching function:	Slow action contact
Protection class (IP):	IP65
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the actuating element:	domed plunger
Design of the electrical connection:	cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-40 to 70 °C
Forced opening:	no
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.3 A
Rated operating current Ie at DC-13, 125 V:	0.8 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	6 A
Rated operating current Ie at AC-15, 125 V:	6 A
Rated operating current Ie at AC-15, 230 V:	6 A
Alignment of the actuating element:	roller plunger straight
Switching function latching:	no
Protection class (NEMA):	other
