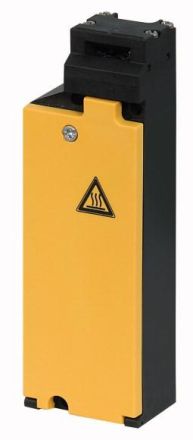

Eaton LSS11120AMTZBZ/X position switch 1S1Ö, basic, magnetic. , 106826

Eaton LSS11120AMTZBZ/X position switch 1S1Ö, basic, magnetic. , 106826

In stock

SKU: 220545

Price on request

€197.08

€0

Overview

Position switch, basic function: position switch, safety position switch, type code: LS.ZBZ/X, product range: basic devices with magnetic force locking (open-circuit principle), protection class: IP65, features: basic device, expandable, ambient temperature: -25 - +40 °C, description: with locking monitoring, monitoring of the door position: permanent, time control of the unlocking possible with ESR5-NV3-30, contact configuration S = normally open contact: 1 S, contact configuration Ö = normally closed contact: 1 Ö, note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, rated control supply voltage magnetic drive: Us= 120 V 50/60 Hz V, housing: plastic, connection type: screw terminal, standards and regulations: IEC/EN 60947

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Length of sensor:	39 mm
Width of sensor:	60 mm
Height of sensor:	173 mm
Switching function:	Slow action contact
Protection class (IP):	IP65
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	yes
With status display:	no
Design of the interface:	without
Design of the actuating element:	without
Design of the electrical connection:	Cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25 to 70 °C
Number of safety-related auxiliary contacts:	1
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.3 A
Rated operating current Ie at DC-13, 125 V:	0.8 A
Rated operating current Ie at DC-13, 24 V:	3 A
Rated operating current Ie at AC-15, 24 V:	6 A
Rated operating current Ie at AC-15, 125 V:	6 A
Rated operating current Ie at AC-15, 230 V:	6 A
Alignment of the actuating element:	other
Switching function latching:	no
Protection class (NEMA):	other
