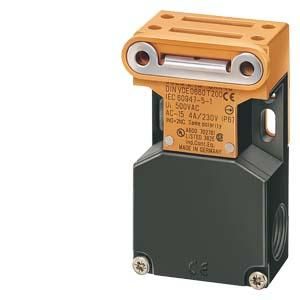

Siemens 3SE2243-0XX40 safety position switch 1NO+2NC

In stock
SKU: 356050
€42.73
Into a basketIn the basketGo

Overview

Safety position switch with separate actuator, molded plastic housing, side and front slow-action switching elements 1NO+2NC, 3 x (M20 x 1.5), extraction force 5 N, delivery without actuator, safety position switch SIRIUS 3SE22 for tamper-proof protective grille, flap or safety door monitoring. Thanks to coded actuators and 5 approach directions, these can be mounted flexibly. When the doors are opened, the circuit is interrupted safely and reliably.Safety is a SIRIUS business.

Property Value
Suitable for safety functions: yes
With status display: no
Ambient temperature during operation: -30 to 80 °C
Width of the sensor: 52 mm
Length of the sensor: 90 mm
Rated operating current Ie at AC-15, 230 V: 4 A
Number of contacts as normally open: 1
Number of contacts as normally closed: 2
Number of safety-related auxiliary contacts: 2
Rated operating current Ie at DC-13, 24 V: 4 A
Height of the sensor: 36 mm

Characteristics

HAB3SE2243-0XX40 1NO+2NC
ManufacturerSIEMENS
HAN3SE2243-0XX40
GTIN4011209536746
Number of contacts as normally open1
Number of contacts as opener2
Number of safety-related auxiliary contacts2
Rated operating current Ie at AC-15, 230 V4 A
Rated operating current Ie at DC-13, 24 V4 A
Width of the sensor52 mm
Suitable for security functionsYes
Height of the sensor36 mm
Length of the sensor90 mm
With status displayNo
Ambient temperature during operation-30 to 80 °C
