Rated operating current Ie at DC-13, 125 V0.55 A
Rated operating current Ie at AC-15, 24 V6 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V6 A

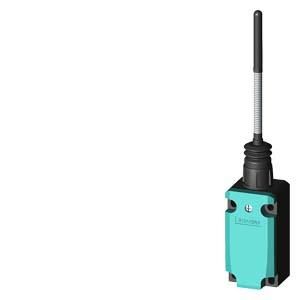

HAB3SE5112-0CR01 Metal housing 1S 2OE
HAN3SE5112-0CR01
GTIN4011209692350
Number of contacts as normally open1
Number of contacts as opener1
Rated operating current Ie at DC-13, 24 V3 A
Width of the sensor40 mm
Suitable for security functionsNo
Height of the sensor37.3 mm
Length of the sensor220.299999999 mm
With status displayNo
Switching function latchingNo
Protection class (NEMA)12
Ambient temperature during operation-25 to 85 °C
Forced openingNo
