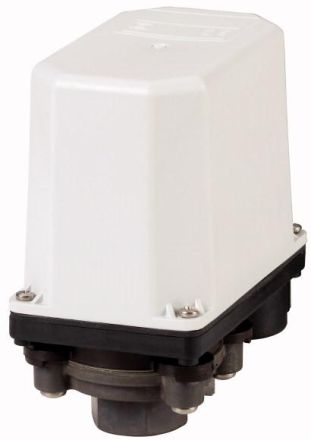

Eaton MCS11 pressure switch, 1 W, 15 bar, 088527

In stock

SKU: 221781

Price on request

€95.09

€0

Overview

IEC EN 60947-5-1, IP65, pressure monitoring of liquid and gaseous media, e.g. compressed air, for controlling auxiliary circuits, switch-on and switch-off pressure can be set separately

Property	Value
Number of auxiliary contacts as changeover contacts:	1
Design of the electrical connection:	Screw connection
Switching-off pressure:	0 to 11 bar
Rated operating voltage Ue at AC 50 Hz:	0 to 230 V
Rated operating voltage Ue at AC 60 Hz:	0 to 230 V
Rated operating voltage Ue at DC:	0 to 110 V
Burst pressure:	90 bar
Switch-on pressure:	0 to 10.4 bar
Electronic version:	no
Explosion-proof:	no
Suitable as 2-point controller:	yes
Suitable as limiter:	no
Suitable as monitor:	yes
Max. Test pressure:	32 bar
Medium temperature:	25 to 80 °C
With manual operation:	no
Protection class (IP):	IP65
With manual on/off switch:	no
Connection:	Internal thread gas cylindrical (BSPP)
Thread size:	1/2 inch
With display:	no
Protection class (NEMA):	other
Height:	111 mm
Width:	60 mm
Depth:	96 mm
