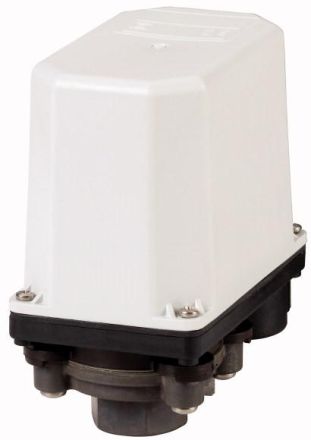

Eaton MCS22-G pressure switch, 1 W, gold-plated, 25 bar, 058691

In stock

SKU: 221788

Price on request

€128.21

€0

Overview

Pressure switch, 1 W, gold-plated, 25 bar

Eaton Type: MCS22-G
Eaton Article No.: 058691

Property	Value
Number of auxiliary contacts as changeover contacts:	1
Design of the electrical connection:	Screw connection
Switching-off pressure:	0 to 22 bar
Rated operating voltage Ue at AC 50 Hz:	0 to 230 V
Rated operating voltage Ue at AC 60 Hz:	0 to 230 V
Rated operating voltage Ue at DC:	0 to 110 V
Burst pressure:	90 bar
Switching-on pressure:	0 to 21 bar
Adjustable current range:	0 A
Electronic design:	no
Explosion-proof:	no
Suitable as a 2-point controller:	yes
Suitable as a limiter:	no
Suitable as a monitor:	yes
Max. Test pressure:	32 bar
Medium temperature:	25 to 80 °C
With manual operation:	no
Protection class (IP):	IP65
Initial setting:	0 hPa
Final setting:	0 hPa
Max. Working pressure:	25000 hPa
With manual on/off switch:	no
Connection:	Internal thread cylindrical (BSPP)
Thread size:	1/2 inch
With display:	no
Protection class (NEMA):	other
Height:	111 mm
Width:	60 mm
Depth:	96 mm
