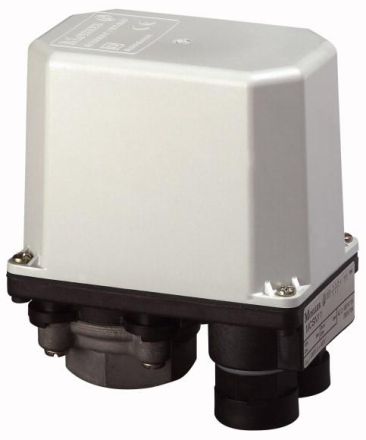

Eaton MCSN11 pressure switch, 3-pole, 15 bar, 029203

In stock

SKU: 221796

Price on request

€106.04

€0

Overview

IEC EN 60947-5-1, IP65, pressure monitoring of liquid and gaseous media, e.g. compressed air, for switching loads, switch-on and switch-off pressure can be set separately

Property	Value
Number of normally closed contacts as main contacts:	3
Design of the electrical connection:	Screw connection
Switching-off pressure:	0 to 11 bar
Rated operating power at AC-3, 400 V:	5.5 kW
Rated operating voltage Ue at AC 50 Hz:	0 to 400 V
Rated operating voltage Ue at AC 60 Hz:	0 to 400 V
Rated operating voltage Ue at DC:	0 to 250 V
Rated operating current Ie at AC-3, 400 V:	11.5 A
Burst pressure:	90 bar
Switch-on pressure:	0 to 9.4 bar
Electronic design:	no
Explosion-proof:	no
Suitable as 2-point controller:	yes
Suitable as limiter:	no
Suitable as monitor:	yes
Max. Test pressure:	32 bar
Medium temperature:	25 to 80 °C
With manual operation:	no
Protection class (IP):	IP65
Switching capacity at AC-3, 240 V:	15 kA
With manual on/off switch:	no
Connection:	Internal thread gas cylindrical (BSPP)
Thread size:	1/2 inch
With display:	no
Protection class (NEMA):	other
Height:	111 mm
Width:	60 mm
Depth:	96 mm
