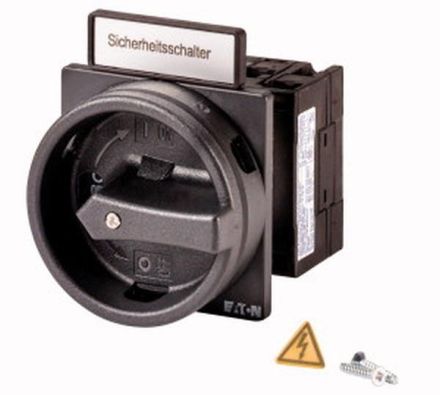

Eaton T3-2-2092CH/EA/SVB-S main switch assembly SUVA, 172964

Eaton T3-2-2092CH/EA/SVB-S main switch assembly SUVA, 172964

In stock

SKU: 227233

Price on request

€81.37

€0

Overview

Fuse switch disconnector SUVA, Product range: Safety switch SUVA, Type code: T3, STOP function: HALT function, with black rotary handle and locking ring, Note: with warning sign safety switch, Lockability: lockable in 0 position, Protection class: Front IP65, Design: Built-in, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated continuous current: Iu = 32 A, 2 unit(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	2
Rated operating power at AC-23, 400 V:	15 kW
Number of auxiliary contacts as normally closed:	2
Number of auxiliary contacts as normally open:	2
Rated continuous current Iu:	32 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Complete device in housing
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	1 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	yes
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	0.65 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	11 kW
Switching capacity at 400 V:	15 kW
Rated continuous current at AC-21, 400 V:	32 A
Number of Switch:	1
Rated continuous current at AC-23, 400 V:	32 A
Protection class (NEMA):	12
