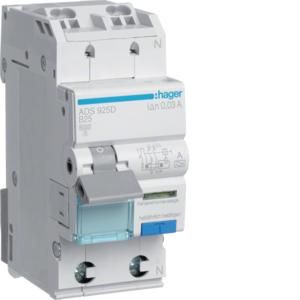

Hager ADS925D FI/LS switch 1P+N 6kA B25A 0.03A A QB

Hager ADS925D FI/LS switch 1P+N 6kA B25A 0.03A A QB

In stock

SKU: 156226

Price on request

€67.39

€0

Overview

Residual current circuit breaker 1P+N 6kA B characteristic 25A 30mA type A QC. Residual current circuit breaker with QuickConnect terminal according to DIN EN 60898-1,0641-11, on the outgoing circuit up to 20 A and on the incoming circuit up to 63 A. Contact protection DIN0106 Part 100, blue test button and residual current display. Easy individual removal from the phase busbar system. With symbol. Suitable for the subsequent installation of additional equipment. Labeling option directly on the device.

Property	Value
Trip characteristic:	B
Rated current:	25 A
Rated residual current:	0.03 A
Rated voltage:	240 V
Frequency:	50 Hz
Number of poles (total):	2
Width in pitch units:	2
Residual current type:	A
Installation depth:	68 mm
Rated breaking capacity according to IEC 60947-2:	6 kA
Surge current strength:	0.25 kA
Protection class (IP):	IP2X
Energy limitation class:	3
Overvoltage category:	3
Pollution degree:	2
Switching neutral conductor:	yes
Number of protected poles:	1
Type of voltage:	AC
False tripping protection:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Rated short-circuit breaking capacity Icn according to EN 61009-1:	6 kA
Shutdown characteristic:	undelayed
With locking device:	yes
Ambient temperature during operation:	-25 to 40 °C
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Connectable conductor cross-section, stranded:	1 to 16 mm²
