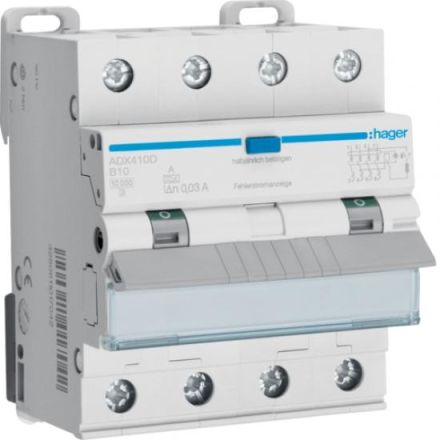

Hager ADX410D FI/LS switch 4-pole 10kA B10A 0.03A A

Hager ADX410D FI/LS switch 4-pole 10kA B10A 0.03A A

In stock

SKU: 303509

Price on request

€230.52

€0

Overview

Residual current circuit breaker 4P 10kA B-10A 30mA A Typ. Residual current circuit breaker according to DIN0664-20 / EN61009-1 with 4-pole circuit breaker for 400 V three-phase circuits and a residual current protection circuit in a compact housing. Contact protection according to IP2x according to DIN0106 Part 100, blue test button and residual current display. Easy individual removal from the phase busbar system. With VDE symbol. Suitable for the subsequent installation of additional equipment. Labeling option directly on the device.

Property	Value
Triggering characteristic:	B
Rated current:	10 A
Rated residual current:	0.03 A
Rated voltage:	400 V
Frequency:	50 Hz
Number of poles (total):	4
Width in pitch units:	4
Fault current type:	A
Installation depth:	70 mm
Surge current strength:	3 kA
Protection class (IP):	IP20
Energy limitation class:	3
Overvoltage category:	3
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	4
Type of voltage:	AC
False tripping protection:	no
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Rated short-circuit breaking capacity Icn according to EN 61009-1:	10 kA
Shutdown characteristics:	undelayed
With locking device:	yes
Ambient temperature during operation:	-25 to 40 °C
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Connectable conductor cross-section, stranded:	1 to 16 mm²
