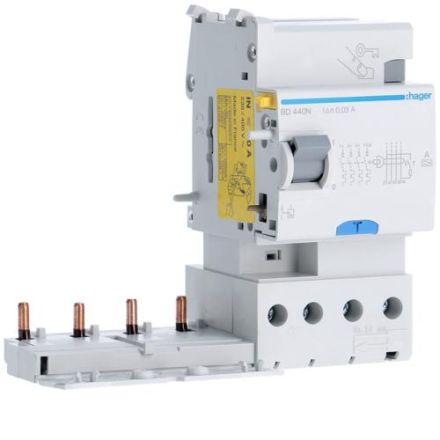

Hager BD440N FI block 4-pole 40/0, 03A type A

Hager BD440N FI block 4-pole 40/0, 03A type A

In stock

SKU: 303547

Price on request

€227.46

€0

Into a basketIn the basketGo

Overview

Fault current block 4-pole 40A 30mA type A

Property	Value
Nominal voltage:	230 to 400 V
Delay time adjustable:	no
Rated fault current adjustable:	no
Nominal current:	40 A
Fault current type:	A
Number of poles:	4
Rated residual current:	0.03 A
Frequency:	50 Hz
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Connectable conductor cross-section, stranded:	1 to 16 mm²
False tripping protection:	no
Protection class (IP):	IP20
Ambient temperature during operation:	-25 to 70 °C

Characteristics

Manufacturer

HANBD440N

GTIN3250611344520

Connectable conductor cross-section solid1 to 25 mm²

Connectable conductor cross-section stranded1 to 16 mm²

Rated residual current0.03A

Rated insulation voltage Ui500V

Rated impulse withstand voltage Uimp4kV

False trigger protectionNo

Residual current typeA

Frequency50Hz

Nominal voltage230 to 400 V

Rated current40A

Number of poles4

IP protection)IP20

Ambient temperature during operation-25 to 70 °C

Hager BD440N FI block 4-pole 40/0, 03A type A

Hager BD440N FI block 4-pole 40/0, 03A type A

Price on request

€227.46

€0

Into a basketIn the basketGo
