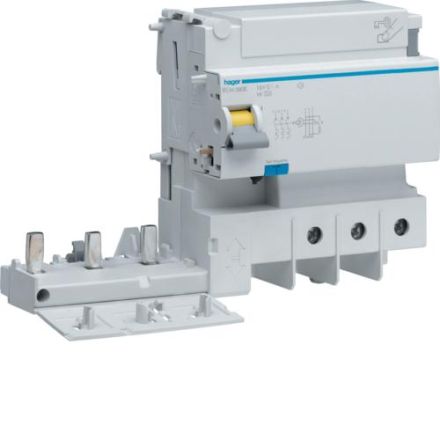

Hager BDH380E FI-Block 3-pole 125/0, 03A HI

In stock

SKU: 303550

Price on request

€270.46

€0

Overview

Residual current block 3-pole 125A 30mA Type HI. FI block type A HI (pulse current sensitive and high immunity) according to DIN EN 61009-1 (VDE 0664-20) can be attached to circuit breakers. With clamping force reinforcement and top hat rail clip with two holding positions. Device can be sealed.

Property	Value
Nominal voltage:	415 V
Delay time adjustable:	no
Rated residual current adjustable:	no
Rated current:	125 A
Residual current type:	other
Number of poles:	3
Rated residual current:	0.03 A
Frequency:	50 Hz
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	6 kV
Connectable conductor cross-section, single-wire:	10 to 70 mm²
Connectable conductor cross-section, stranded:	10 to 50 mm²
False tripping protection:	yes
Protection class (IP):	IP20
Degree of pollution:	3
Ambient temperature during operation:	-25 to 60 °C
