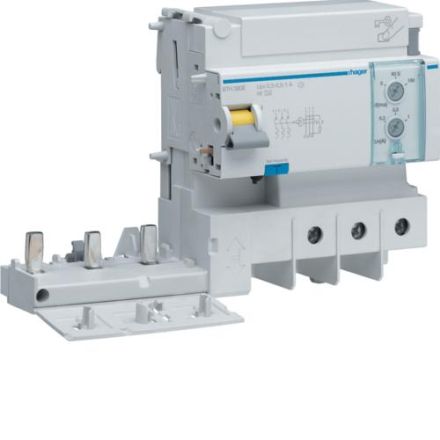

Hager BTH380E FI-Block 3-pole 125A adjustable HI

In stock

SKU: 303553

Price on request

€277.94

€0

Overview

Residual current block 3-pole 125A residual current adjustable type HI. FI block type A HI (pulse current sensitive and high immunity) according to DIN EN 61009-1 (VDE 0664-20) can be attached to a circuit breaker. With clamping force reinforcement and top hat rail clip with two holding positions. Device can be sealed.

Property	Value
Max. Delay time:	150 ms
Nominal voltage:	415 V
Delay time adjustable:	yes
Rated residual current adjustable:	yes
Nominal current:	125 A
Residual current type:	other
Number of poles:	3
Rated residual current:	0.3 to 1 A
Frequency:	50 Hz
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	6 kV
Connectable conductor cross-section, single-wire:	10 to 70 mm²
Connectable conductor cross-section, stranded:	10 to 50 mm²
False tripping protection:	yes
Protection class (IP):	IP20
Pollution level:	3
Ambient temperature during operation:	-25 to 60 °C
