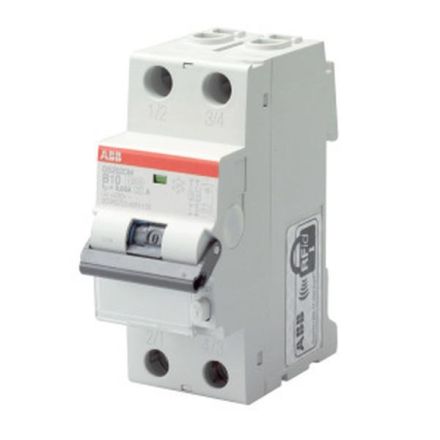

ABB Stotz-Kontakt DS202C B32 A30 6kA 2p 30mA FI/LS switch, 2CSR252140R1325

Residual current circuit breakers (RCBOs) offer protection for people and property as well as protection against electrically ignited fires in accordance with DIN0100-410 and DIN0100-530. They guarantee protection of single-phase circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC residual current component of up to 6 mA against earth. As well as fault protection (protection against indirect contact), additional protection (with I n 30 mA) and fire protection (with I n 300 mA). They meet the product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21). Areas of application are household, commercial and industrial applications. The extensive range of accessories offers you everything you need for your installation tasks. Numerous approvals make the DS202C fit for worldwide use., For networks with 2 phases 230 V AC (without N conductor) or mobile distributors supplied via Schuko plug (1P+N), such as: caravan applications., Rated switching capacity according to IEC/EN 61009 Icn = 6 kA., RCBO DS202C A Type A is 2-pole protected (LS), 2-pole switching.
