Shutdown characteristicsWithout delay
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA

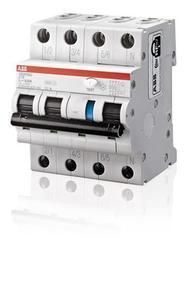

HABDS203NC B13 A30
HAN2CSR256140R1135
GTIN8012542078029
Connectable conductor cross-section solid25 mm²
Connectable conductor cross-section stranded1 to 25 mm²
Number of protected poles3
Trigger characteristicsB
Rated breaking capacity according to EN 610096kA
Rated breaking capacity according to IEC 60947-210kA
Rated residual current0.03A
Rated insulation voltage Ui500V
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current13 A
Width in pitch units4
Installation depth69 mm
Energy limitation class3
False trigger protectionNo
Residual current typeA
Frequency50/60Hz
Suitable for flush-mounted installationNo
With locking deviceYes
Switching neutral conductorYes
Number of poles (total)4
IP protection)IP2X
Voltage typeAC
Surge current strength0.25kA
Ambient temperature during operation-25 to 55 °C
Degree of contamination2
Overvoltage category3
