Shutdown characteristicsShort-term delayed
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA

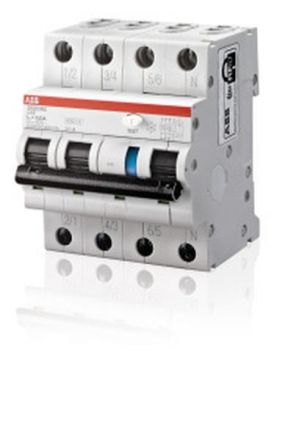

HABDS203NCA-C25/0.03A
HAN2CSR256440R1254
GTIN8012542261223
Connectable conductor cross-section solid25 mm²
Connectable conductor cross-section stranded1 to 25 mm²
Number of protected poles3
Trigger characteristicsC
Rated breaking capacity according to EN 610096kA
Rated breaking capacity according to IEC 60947-210kA
Rated residual current0.03A
Rated insulation voltage Ui500V
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current25A
Width in pitch units4
Installation depth69 mm
Energy limitation class3
False trigger protectionYes
Residual current typeA
Frequency50/60Hz
Suitable for flush-mounted installationNo
With locking deviceYes
Switching neutral conductorYes
Number of poles (total)4
IP protection)IP2X
Voltage typeAC
Surge current strength3kA
Ambient temperature during operation-25 to 55 °C
Degree of contamination2
Overvoltage category3
