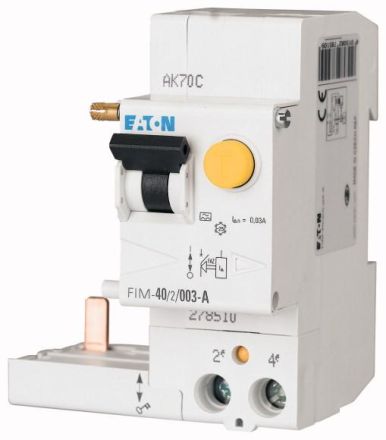

Eaton FIM-40/2/0.3-A FAZ FI trip block, 278511

In stock
SKU: 476415
€63.18
Into a basketIn the basketGo

Overview

When assembled with a high-quality FAZ type circuit breaker, it becomes a fixed, high-quality FI/LS combination, extendable busbar bracket locked in mounting position, for subsequent installation on 2-, 3-, 3+N- and 4-pole FAZ circuit breakers, rated current 40 and 63 A

PropertyValue
Nominal voltage:230 to 400 V
Delay time adjustable:no
Rated residual current adjustable:no
Nominal current:40 A
Residual current type:A
Number of poles:2
Rated residual current:0.3 A
Surge current strength:0.25 kA
Frequency:50 Hz
Rated insulation voltage Ui:440 V
Rated impulse withstand voltage Uimp:4 kV
Connectable conductor cross-section, single-wire:1 to 25 mm²
Connectable conductor cross-section, stranded:1 to 25 mm²
False tripping protection:no
With locking device:no
Protection class (IP):IP20
Pollution level:2
Ambient temperature during operation:-25 to 40 °C

Characteristics

HABFIM-40/2/0,3-A FAZ
ManufacturerEaton
HAN278511
GTIN4015082785116
Connectable conductor cross-section solid1 to 25 mm²
Connectable conductor cross-section stranded1 to 25 mm²
Rated residual current0.3A
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
False trigger protectionNo
Residual current typeA
Frequency50Hz
With locking deviceNo
Nominal voltage230 to 400 V
Rated current40A
Number of poles2
IP protection)IP20
Surge current strength0.25kA
Ambient temperature during operation-25 to 40 °C
Degree of contamination2
