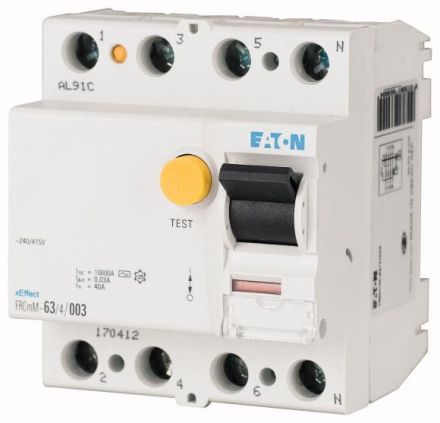

Eaton FRCMM-63/4/003-G/A-NA 63A 4-pole 30mA residual current device, 167109

In stock

SKU: 480014

Price on request

€253.72

€0

Overview

Residual current circuit breaker FRCmM-NA, 4-pole, rated current In: 63 A, rated short-circuit strength Icn: 10 with backup fuse kA, rated residual current IN: 0.03 A, switching devices for export to North America (UL validated)

Property	Value
Rated voltage:	480 V
Rated current:	63 A
Rated residual current:	0.03 mA
Mounting type:	DIN rail
Protection class (IP):	IP20
Frequency:	50/60 Hz
Number of poles:	4
Width in pitch units:	4
Selective type:	no
Residual current type:	A
Additional devices possible:	yes
Installation depth:	70.5 mm
Short-circuit strength (Icw):	10 kA
Surge current strength:	3 kA
Short-time delayed type:	yes
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
With locking device:	yes
Ambient temperature during Operating:	-25 to 40 °C
Pollution level:	2
Connectable conductor cross-section, stranded:	1.5 to 16 mm²
Connectable conductor cross-section, single-wire:	1.5 to 35 mm²
