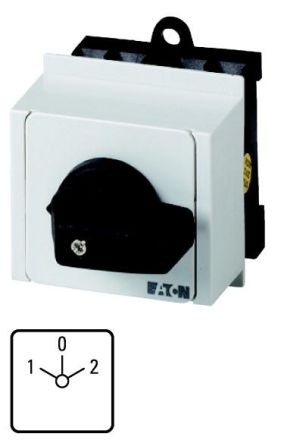

Eaton T0-3-8401/IVS REVERSING SWITCH, 098166

In stock

SKU: 226622

Price on request

€34.88

€0

Overview

Reversing switch, Product range: Control switches, Type identifier: T0, with black toggle and front plate, Contacts: 5, Protection class: Front IP30, Design: Distribution board installation, Switching angle: 60 °, Switching behavior: latching, with 0 position, Front plate: 1-0-2, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated continuous current: Iu = 20 A, 3 Unit(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3

Property	Value
Version:	Reversing switch
Number of poles:	3
Rated continuous current Iu:	20 A
Rated operating current Ie at AC-3, 400 V:	11.5 A
Rated operating power at AC-3, 400 V:	4 kW
Complete device in housing:	no
With zero position:	yes
Design of the actuating element:	short rotary handle
Connection type main circuit:	Screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	no
Suitable for distribution board installation:	yes
Suitable for floor mounting:	no
Protection class (IP), front:	IP30
With retraction to zero position:	no
NEMA protection class, front:	2
Material of the housing:	Plastic
