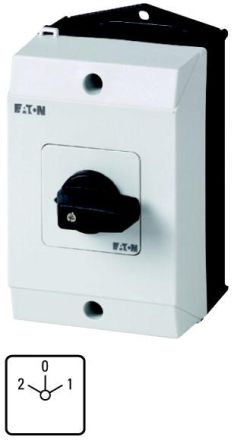

Eaton T3-3-20/I2 reversing switch, 222871

In stock

SKU: 227342

Price on request

€91.40

€0

Overview

Reversing switch, Product range: Control switches, Type identifier: T3, with black toggle and front plate, Note: SOND 29, Contacts: 6, Protection class: IP65, Design: Surface mounting, Switching angle: 45 °, Switching behavior: latching, with 0 position, Front plate: 2-0-1, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated continuous current: Iu = 32 A, 3 Unit(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3

Property	Value
Version:	Reversing switch
Number of poles:	3
Rated continuous current Iu:	32 A
Rated operating current Ie at AC-3, 400 V:	23.7 A
Rated operating power at AC-3, 400 V:	12 kW
Complete device in housing:	yes
With zero position:	yes
Design of the actuating element:	short rotary handle
Connection type main circuit:	Screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	no
Suitable for distribution board installation:	no
Suitable for floor mounting:	yes
Protection class (IP), front:	IP65
With retraction to zero position:	no
NEMA protection class, front:	12
Housing material:	Plastic
