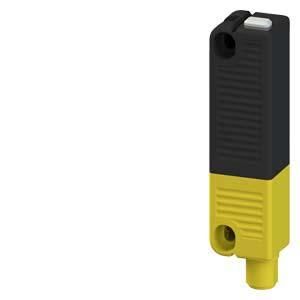

Siemens 3SE6315-1BB03 safety switch 25mmx91mm

In stock

SKU: 343350

Price on request

€376.05

€0

Overview

Possible alternative: 3SE6315-1BB03-1AP0 from 10.2022 Non-contact safety switch RFID rectangular 106 mm x 25 mm individually coded, easy to teach, with M12 connector 8-pin and magnetic latching 18 N. Order actuator separately: 3SE6310-1BC01 RFID safety switch SIRIUS 3SE63 for space-saving, tamper-proof protective grille, flap or protective door monitoring with a high degree of protection IP69K. Due to their high degree of protection IP69K, the non-contact devices are suitable for use in extreme environmental conditions. They offer extensive diagnostic options via LED as well as better installation tolerance of the protective door compared to mechanical switches. The switches can be used for the highest safety requirements according to PL e or SIL 3. All common safety evaluation devices, e.g. B. 3SK can be connected. The RFID safety switches are family-coded (ready to use and replaceable) or individually coded (can be taught in multiple times or once). Versions with magnetic locking and suitable actuators (standard or with magnetic locking) are available. Cover caps, spacers and connecting cables in various lengths are available as accessories.Safety is a SIRIUS business.

Property	Value
Rated supply voltage for DC:	20.4 to 26.4 V
Category according to EN 954-1:	4
Suitable for safety functions:	yes
Length of the sensor:	106.0 mm
Height of the sensor:	22.0 mm
Type of actuation:	Transponder
Rated supply voltage at AC 50 Hz:	20.4 to 26.4 V
Width of the sensor:	25.0 mm
Performance level according to EN ISO 13849-1:	Level e
Protection class (IP):	other
Rated supply voltage at AC 60 Hz:	20.4 to 26.4 V
Number of safe contact outputs:	1
Design of the interface for safety-related communication:	other
Design of the electrical connection:	M12 connector
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Secured switching distance OFF:	16.0 mm
Secured switching distance ON:	10.0 mm
Max. output current at the safe output:	250.0 mA
Ambient temperature:	-25 to 70 °C
Mechanical installation condition for sensor:	flush
Min. Output current:	500.0 mA
Cross-circuit/short-circuit detection possible:	yes
Switching distance:	12.0 mm
Type of voltage:	DC
With monitoring function for downstream devices:	no
Housing material:	Plastic
SIL according to IEC 61508:	3
With status display:	no
