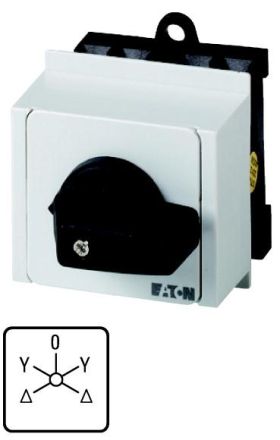

Eaton T0-5-15876/IVS star-delta switch, 000902

In stock
SKU: 226889
€57.88
Into a basketIn the basketGo

Overview

Reversing star-delta switch, Product range: Control switch, Type reference: T0, with black toggle and front plate, Contacts: 10, Protection class: Front IP30, Design: Distribution board installation, Switching angle: 60 °, Switching behavior: latching, with 0 position, Front plate: DY-0-YD, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated continuous current: Iu = 20 A, 5 Unit(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3

PropertyValue
Design:Reversing star-delta switch
Number of poles:3
Rated continuous current Iu:20 A
Rated operating current Ie at AC-3, 400 V:11.5 A
Rated operating power at AC-3, 400 V:5.5 kW
Complete device in housing:no
With zero position:yes
Design of the actuating element:short rotary handle
Connection type main circuit:Screw connection
Suitable for intermediate installation:no
Suitable for front mounting:no
Suitable for distribution board installation:yes
Suitable for floor mounting:yes
Protection class (IP), front:IP30
With retraction to zero position:no
NEMA protection class, front:2
Housing material:Plastic

Characteristics

HABT0-5-15876/IVS
ManufacturerEaton
HAN000902
GTIN4015080009023
Connection type main circuitScrew connection
Design of the actuating elementShort twist grip
Rated operational power at AC-3, 400 V5.5kW
Rated operational current Ie at AC-3, 400 V11.5A
Rated continuous current Iu20A
Suitable for floor mountingYes
Suitable for front mountingNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Complete device in housingNo
With zero settingYes
With retraction to zero positionNo
NEMA protection class, front2
Number of poles3
Protection class (IP), frontIP30
Housing materialPlastic
