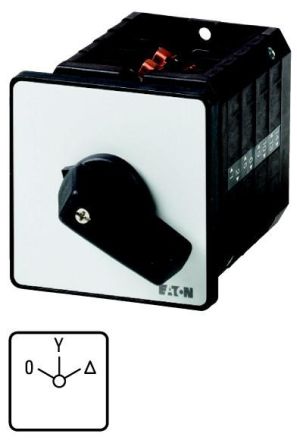

Eaton T5-4-8410/E star-delta switch, 095954

In stock

SKU: 227775

Price on request

€245.77

€0

Overview

Star-delta switch, product range: control switch, type code: T5, with black knob and front plate, contacts: 8, protection class: front IP65, design: flush-mounted, switching angle: 60 °, switching behavior: latching, with 0 position, front plate: 0-YD, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 55 kW, rated continuous current: Iu = 100 A, 4 component(s), standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, load-break switch according to IEC/EN 60947-3

Property	Value
Design:	Star-delta switch
Number of poles:	3
Rated continuous current Iu:	100 A
Rated operating current Ie at AC-3, 400 V:	55 A
Rated operating power at AC-3, 400 V:	45 kW
Complete device in housing:	no
With zero position:	yes
Design of the actuating element:	short rotary handle
Connection type main circuit:	Screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	yes
Suitable for distribution board installation:	no
Suitable for floor mounting:	no
Protection class (IP), front:	IP65
With retraction to zero position:	no
NEMA protection class, front:	12
Housing material:	Plastic
