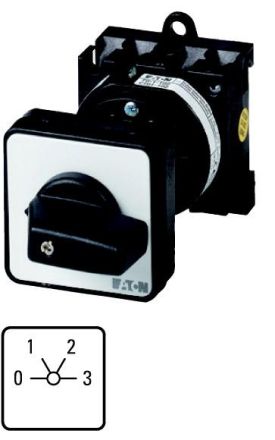

Step switch, product range: control switch, type code: T0, with black knob and front plate, contacts: 3, protection class: front IP65, design: intermediate installation, switching angle: 60 °, switching behavior: latching, with 0 position, front plate: 0-3, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated continuous current: Iu = 20 A, 2 unit(s), standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, load-break switch according to IEC/EN 60947-3
| Property | Value |
| Design: | On/off switch |
| Number of poles: | 1 |
| Rated continuous current Iu: | 20 A |
| Rated operating current Ie at AC-3, 400 V: | 11.5 A |
| Rated operating power at AC-3, 400 V: | 4 kW |
| Complete device in housing: | no |
| With zero position: | yes |
| Design of the actuating element: | short rotary handle |
| Connection type Main circuit: | Screw connection |
| Suitable for intermediate installation: | yes |
| Suitable for front mounting: | no |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | yes |
| Protection class (IP), front: | IP65 |
| With retraction to zero position: | no |
| NEMA protection class, front: | 12 |
| Housing material: | Plastic |
