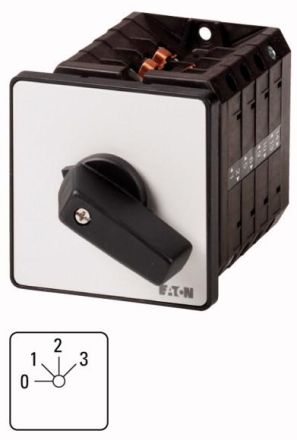

Eaton T5B-2-142/E 94096 step switch, 094096

In stock
SKU: 227837
€107.96
Into a basketIn the basketGo

Overview

Step switch, contacts: 3, 63 A, front plate: 0-5, 45 °, latching, installation

Eaton Type: T5B-2-142/E
Eaton Article No.: 094096

PropertyValue
Rated continuous current Iu:63 A
Number of poles:1
Number of switching positions:6
Degree of protection (IP), front:IP65
Max. Rated operating voltage Ue at AC:690 V
With zero position:yes
With return to zero position:no
Device design:Built-in device
Design of the actuating element:Toggle
Complete device in housing:no
Suitable for intermediate installation:no
Suitable for distribution board installation:no
Suitable for front mounting:yes
Front plate size:88x88 mm
Suitable for floor mounting:no
Switch design:Step switch
Protection class (NEMA), front:12

Characteristics

HABT5B-2-142/E
ManufacturerEaton
HAN094096
GTIN4015080940968
Number of switching positions6
Design of the actuating elementGag
Design of the switchStep switch
Rated continuous current Iu63 A
Front shield size88x88 mm
Suitable for floor mountingNo
Suitable for front mountingYes
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device
Complete device in housingNo
Max. rated operating voltage Ue at AC690V
With zero settingYes
With retraction to zero positionNo
Number of poles1
Protection class (IP), frontIP65
Protection class (NEMA), front12
Eaton T5B-2-142/E 94096 step switch, 094096
Eaton T5B-2-142/E 94096 step switch, 094096
€107.96
