Eaton T5B-8-15142/Z T5B-8-15142/Z , 91261

Eaton T5B-8-15142/Z T5B-8-15142/Z , 91261

In stock

SKU: 228045

Price on request

€297.77

€0

Into a basketIn the basketGo

Overview

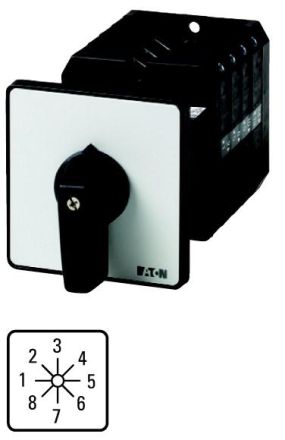

Step switch, contacts: 16, 63 A, front plate: 1-8, 45 °, latching, intermediate installation

Eaton Type: T5B-8-15142/Z
Eaton Article No.: 091261

Property	Value
Rated continuous current Iu:	63 A
Number of poles:	2
Number of switching positions:	8
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	no
With return to zero position:	no
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Suitable for front mounting:	no
Front plate size:	88x88 mm
Suitable for floor mounting:	yes
Switch design:	Step switch
Protection class (NEMA), front:	12

Characteristics

HABT5B-8-15142/Z

Manufacturer

HAN91261

GTIN4015080912613

Number of switching positions8

Design of the actuating elementGag

Design of the switchStep switch

Rated continuous current Iu63 A

Front shield size88x88 mm

Suitable for floor mountingYes

Suitable for front mountingNo

Suitable for distribution board installationNo

Suitable for intermediate constructionYes

Device typeBuilt-in device

Complete device in housingNo

Max. rated operating voltage Ue at AC690V

With zero settingNo

With retraction to zero positionNo

Number of poles2

Protection class (IP), frontIP65

Protection class (NEMA), front12
