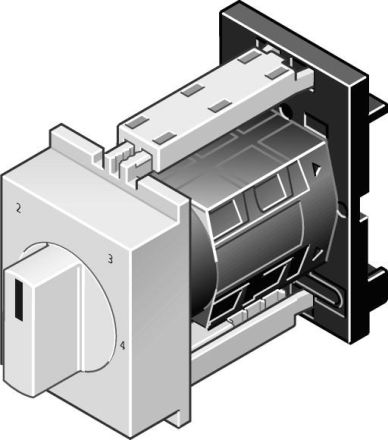

Eaton TM-2-8231/IVS step switch, 225345

In stock

SKU: 228124

Price on request

€41.86

€0

Overview

Step switch, Product range: Control switch, Standards and regulations: IEC/EN 60947,0660, CSA, UL, Control switch according to IEC/EN 60947-5-1, Auxiliary switch according to IEC/EN 60947-5-1, Type code: TM, with black knob and front plate, Contacts: 4, Number of steps: 4 steps 60°, Protection class: Front IP30, Design: Distribution board installation, Switching angle: 60 °, Switching behavior: latching, without 0 position, 2 unit(s), Rated continuous current: Iu= 10 A, Front plate: 1-4

Property	Value
Rated continuous current Iu:	10 A
Number of poles:	1
Number of switching positions:	4
Degree of protection (IP), front:	IP30
Max. Rated operating voltage Ue at AC:	500 V
With zero position:	no
With return to zero position:	no
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Suitable for front mounting:	no
Front plate size:	30x30 mm
Suitable for floor mounting:	yes
Switch design:	Step switch
Width in modular units:	4
NEMA protection class, front:	2
