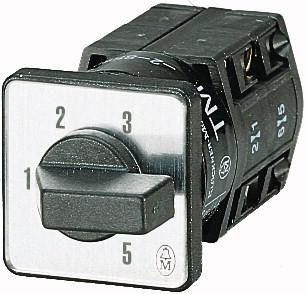

Eaton TM-3-8232/EZ 15592 step switch, 015592

In stock

SKU: 228159

Price on request

€43.92

€0

Overview

Step switch, Product range: Control switch, Standards and regulations: IEC/EN 60947,0660, CSA, UL, Control switch according to IEC/EN 60947-5-1, Auxiliary switch according to IEC/EN 60947-5-1, Type code: TM, with black knob and front plate, Contacts: 5, Number of steps: 5 steps 60°, Protection class: Front IP65, Design: Central installation, Switching angle: 60 °, Switching behavior: latching, without 0 position, 3 Unit(s), Rated continuous current: Iu= 10 A, Front plate: 1-5

Property	Value
Rated continuous current Iu:	10 A
Number of poles:	1
Number of switching positions:	5
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	500 V
With zero position:	no
With return to zero position:	no
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Suitable for front mounting:	yes
Front plate size:	30x30 mm
Suitable for floor mounting:	no
Switch design:	Step switch
NEMA protection class, front:	12
