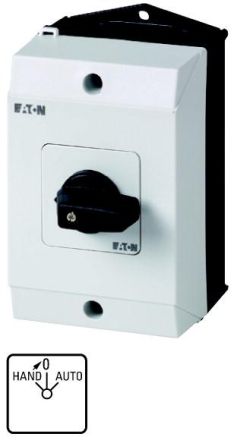

Eaton T0-1-15434/I1 control pushbutton switch, 207071

In stock

SKU: 225810

Price on request

€34.75

€0

Overview

Changeover switch, product range: control switches, standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, load-break switch in accordance with IEC/EN 60947-3, type code: T0, with black toggle and front plate, contacts: 2, push-button function: with push-button function HAND, protection class: IP65, design: surface mounting, switching angle: 45 °, switching behavior: momentary/latching, with 0 position, with return to 0, 1 unit(s), rated continuous current: Iu= 20 A, front plate: HAND>0-AUTO

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	1
Number of switching positions:	3
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	yes
Device design:	Surface-mounted device
Design of the actuating element:	Toggle
Complete device in housing:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for floor mounting:	yes
Switch design:	Changeover switch
NEMA protection class, front:	12
