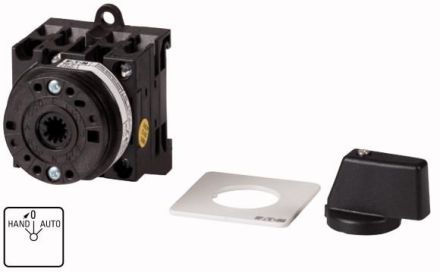

Eaton T0-1-15434/XZ changeover switch, 1-pole, Iu = 20 A, 45°, basic switch, 009280

Eaton T0-1-15434/XZ changeover switch, 1-pole, Iu = 20 A, 45°, basic switch, 009280

In stock

SKU: 225812

Price on request

€21.22

€0

Into a basketIn the basketGo

Overview

Changeover switch, 1-pole, Iu = 20 A, 45°, basic switch

Eaton Type: T0-1-15434/XZ
Eaton Article No.: 009280

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	1
Number of switching positions:	3
Degree of protection (IP), front:	IP00
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	yes
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for Floor mounting:	yes
Switch design:	Changeover switch
Protection class (NEMA), front:	other

Characteristics

HABT0-1-15434/XZ

Manufacturer

HAN009280

GTIN4015080092803

Number of switching positions3

Design of the actuating elementGag

Design of the switchSwitch

Rated continuous current Iu20A

Front shield size48x48 mm

Suitable for floor mountingYes

Suitable for front mountingNo

Suitable for distribution board installationNo

Suitable for intermediate constructionYes

Device typeBuilt-in device

Complete device in housingNo

Max. rated operating voltage Ue at AC690V

With zero settingYes

With retraction to zero positionYes

Number of poles1

Protection class (IP), frontIP00

Protection class (NEMA), frontOther
