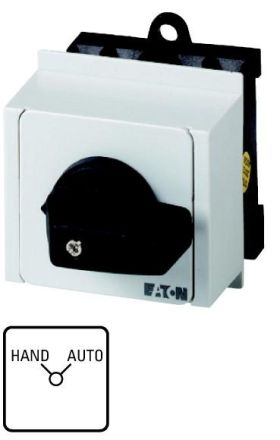

Eaton T0-1-15451/IVS control switch 1-pole hand auto, 083943

In stock

SKU: 225823

Price on request

€26.67

€0

Overview

Changeover switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3, Type code: T0, with black toggle and front plate, Contacts: 2, Degree of protection: Front IP30, Design: Distribution board installation, Switching angle: 90 °, Switching behavior: latching, without 0 position, 1 unit(s), Rated continuous current: Iu= 20 A, Front plate: HAND-AUTO

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	1
Number of switching positions:	2
Degree of protection (IP), front:	IP30
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	no
With return to zero position:	no
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for floor mounting:	yes
Switch design:	Changeover switch
Width in modular units:	4
NEMA protection class, front:	2
