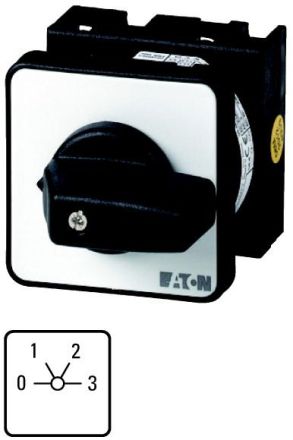

Eaton T0-10-15104/E changeover switch, 009875

In stock
SKU: 225681
€108.10
Into a basketIn the basketGo

Overview

Pole changeover switch, contacts: 19, 20 A, 3 speeds, front plate: 1-2-3, 60 °, latching, installation

Eaton Type: T0-10-15104/E
Eaton Article No.: 009875

PropertyValue
Design:Pole switch
Number of poles:3
Rated continuous current Iu:20 A
Rated operating current Ie at AC-3, 400 V:11.5 A
Rated operating power at AC-3, 400 V:4 kW
Complete device in housing:no
With zero position:yes
Design of the actuating element:short rotary handle
Connection type Main circuit:Screw connection
Suitable for intermediate installation:no
Suitable for front mounting:yes
Suitable for distribution board installation:no
Suitable for floor mounting:no
Protection class (IP), front:IP65
With retraction to zero position:no
Protection class (NEMA), front:12
Housing material:Plastic

Characteristics

HABT0-10-15104/E
ManufacturerEaton
HAN009875
GTIN4015080098751
Connection type main circuitScrew connection
Design of the actuating elementShort twist grip
Rated operational power at AC-3, 400 V4kW
Rated operational current Ie at AC-3, 400 V11.5A
Rated continuous current Iu20A
Suitable for floor mountingNo
Suitable for front mountingYes
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Complete device in housingNo
With zero settingYes
With retraction to zero positionNo
Number of poles3
Protection class (IP), frontIP65
Protection class (NEMA), front12
Housing materialPlastic
