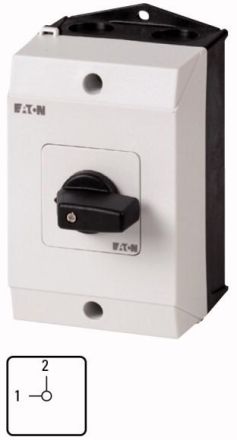

Eaton T0-3-15443/I1 control switch, 222652

In stock

SKU: 226437

Price on request

€52.67

€0

Overview

Changeover switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 6, Protection class: IP65, Design: Surface mounting, Switching angle: 90 °, Switching behavior: latching, without 0 position, 3 assembly unit(s), Rated continuous current: Iu= 20 A, Front plate: 1-2

Property	Value
Rated continuous current Iu:	20 A
Number of poles:	3
Number of switching positions:	2
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	no
With return to zero position:	no
Device design:	Surface-mounted device
Design of the actuating element:	Toggle
Complete device in housing:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Suitable for front mounting:	no
Front plate size:	48x48 mm
Suitable for floor mounting:	yes
Switch design:	Changeover switch
NEMA protection class, front:	12
