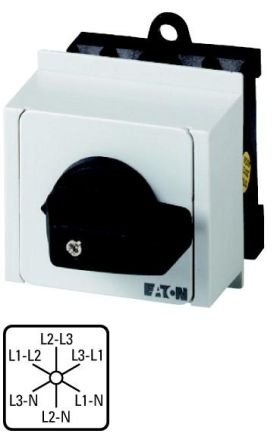

Eaton T0-3-15924/IVS voltmeter switch, 026997

In stock
SKU: 226484
€42
Into a basketIn the basketGo

Overview

Cam switch according to IEC/EN60947, size T0, distribution board installation form, installation dimensions according to DIN 43 880, can be snapped onto a top hat rail, protection class front IP30 with black toggle, rated continuous current Iu 20A, rated operating voltage Ue 690V, available accessories according to catalog information cam switch T. General designs: Insulated surface-mounted housing, installation, central installation, intermediate installation, IVS distribution board installation.

PropertyValue
Device type:Distribution board installation
With zero setting:no
Measurement between phases possible:yes
Measurement between phase and neutral possible:yes
With control element:yes
Suitable for series installation:yes
Protection class (IP):IP30
Protection class (NEMA):2

Characteristics

With control elementYes
HABT0-3-15924/IVS
ManufacturerEaton
HAN026997
GTIN4015080269977
Suitable for series installationYes
Device typeDistribution installation
With zero settingNo
IP protection)IP30
Protection class (NEMA)2
