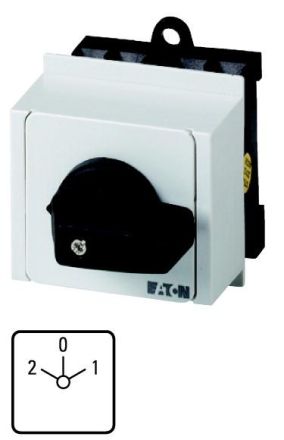

Eaton T0-5-124/IVS pole changeover switch, Dahlander, 014091

In stock

SKU: 226849

Price on request

€63.35

€0

Overview

Pole changeover switch, contacts: 9, 20 A, Dahlander circuit, 2 speeds, front plate: 2-0-1, 60 °, latching, distribution board installation, SOND 30

Eaton Type: T0-5-124/IVS
Eaton Article No.: 014091

Property	Value
Design:	Dahlander switch
Number of poles:	3
Rated continuous current Iu:	20 A
Rated operating current Ie at AC-3, 400 V:	11.5 A
Rated operating power at AC-3, 400 V:	4 kW
Complete device in housing:	no
With zero position:	yes
Design of the actuating element:	short rotary handle
Connection type Main circuit:	Screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	no
Suitable for distribution board installation:	yes
Suitable for floor mounting:	yes
Protection class (IP), front:	IP30
With retraction to zero position:	no
Protection class (NEMA), front:	2
Housing material:	Plastic
