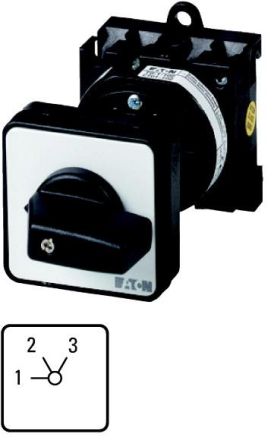

Pole changeover switch, contacts: 16, 20 A, 2 speeds, 2 separate windings, front plate: 1-2-3, 60 °, latching, intermediate installation
Eaton Type: T0-8-15102/Z
Eaton Article No.: 016083
| Property | Value |
| Design: | Pole switch |
| Number of poles: | 3 |
| Rated continuous current Iu: | 20 A |
| Rated operating current Ie at AC-3, 400 V: | 11.5 A |
| Rated operating power at AC-3, 400 V: | 4 kW |
| Complete device in housing: | no |
| With zero position: | no |
| Design of the actuating element: | short rotary handle |
| Connection type Main circuit: | Screw connection |
| Suitable for intermediate installation: | yes |
| Suitable for front mounting: | no |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | yes |
| Protection class (IP), front: | IP65 |
| With retraction to zero position: | no |
| Protection class (NEMA), front: | 12 |
| Housing material: | Plastic |
