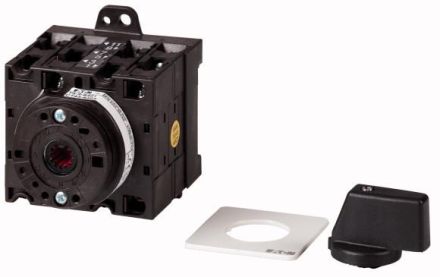

Changeover switch, Product range: Control switch, Type reference: T3, Contacts: 10, Design: Intermediate installation, Basic switch, Switching angle: 60 °, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated continuous current: Iu = 32 A, 5 Unit(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Switch disconnector according to IEC/EN 60947-3
| Property | Value |
| Design: | Changeover switch |
| Number of poles: | 5 |
| Rated continuous current Iu: | 32 A |
| Rated operating current Ie at AC-3, 400 V: | 23.7 A |
| Rated operating power at AC-3, 400 V: | 12 kW |
| Complete device in housing: | no |
| With zero position: | yes |
| Design of the actuating element: | short rotary handle |
| Connection type Main circuit: | Screw connection |
| Suitable for intermediate installation: | yes |
| Suitable for front mounting: | no |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | yes |
| Protection class (IP), front: | IP65 |
| With retraction to zero position: | no |
| NEMA protection class, front: | 12 |
| Housing material: | Plastic |
