Eaton T5-6-8609/E changeover switch, 094749

In stock

SKU: 227800

Price on request

€351.69

€0

Overview

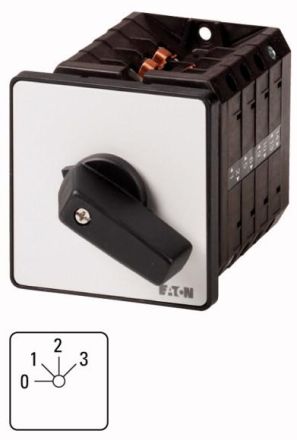

Pole changeover switch, contacts: 12, 100 A, 2 speeds, 2 separate windings, front plate: 0-1-2-3, 60 °, latching, installation

Eaton Type: T5-6-8609/E
Eaton Article No.: 094749

Property	Value
Design:	Pole changeover switch
Number of poles:	3
Rated continuous current Iu:	100 A
Rated operating current Ie at AC-3, 400 V:	55 A
Rated operating power at AC-3, 400 V:	30 kW
Complete device in housing:	no
With zero position:	yes
Design of the actuating element:	short rotary handle
Connection type Main circuit:	Screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	yes
Suitable for distribution board installation:	no
Suitable for floor mounting:	no
Protection class (IP), front:	IP65
With retraction to zero position:	no
Protection class (NEMA), front:	12
Housing material:	Plastic
