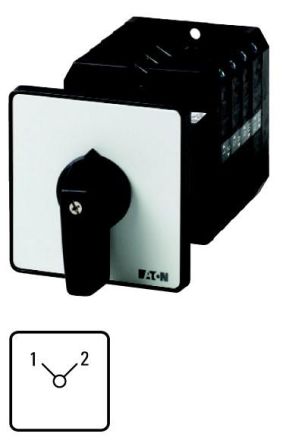

Eaton T5B-3-50/Z 92399 changeover switch, 092399

Eaton T5B-3-50/Z 92399 changeover switch, 092399

In stock

SKU: 227872

Price on request

€149.29

€0

Into a basketIn the basketGo

Overview

Pole changeover switch, contacts: 6, 63 A, 2 speeds, front plate: 1-2, 90 °, latching, intermediate installation

Eaton Type: T5B-3-50/Z
Eaton Article No.: 092399

Property	Value
Design:	Pole switch
Number of poles:	3
Rated continuous current Iu:	63 A
Rated operating current Ie at AC-3, 400 V:	41 A
Rated operating power at AC-3, 400 V:	22 kW
Complete device in housing:	no
With zero position:	no
Design of the actuating element:	short rotary handle
Connection type Main circuit:	Screw connection
Suitable for intermediate installation:	yes
Suitable for front mounting:	no
Suitable for distribution board installation:	no
Suitable for floor mounting:	yes
Protection class (IP), front:	IP65
With retraction to zero position:	no
Protection class (NEMA), front:	12
Housing material:	Plastic

Characteristics

HABT5B-3-50/Z

Manufacturer

HAN092399

GTIN4015080923992

Connection type main circuitScrew connection

Version

Design of the actuating elementShort twist grip

Rated operational power at AC-3, 400 V22kW

Rated operational current Ie at AC-3, 400 V41 A

Rated continuous current Iu63 A

Suitable for floor mountingYes

Suitable for front mountingNo

Suitable for distribution board installationNo

Suitable for intermediate constructionYes

Complete device in housingNo

With zero settingNo

With retraction to zero positionNo

Number of poles3

Protection class (IP), frontIP65

Protection class (NEMA), front12

Housing materialPlastic
